Commercial & Wash Basin Taps

Working pressure:

• 1 to 5 bar

Flow:

• 3 l/min at 3 bar - 4-position flow adjustment device

• Anti-water-hammering design

Flow time:

• 15 seconds ± 5 seconds

Hydraulic supply:

• G 3/8" (12x17)

Thermal resistance:

• Resistant to 75°C for 30 minute thermal shock

Security:

• Non-turnable push button

• Non-removable, wear-proof red marker

• With temperature limiter (at 38°C for cold water at 15°C/3 bar and hot water at 60°C/3 bar)

Delivered with:

• 2 PEX Hoses with NF check valves and revolving nut

• 2 MM G 3/8" (12x17) Stop valves

• 2 Filter gaskets

• 1 Stainless steel plain washer

• 1 Fixing bracket

• 1 Base gasket

• 1 Brass clamping nut

• Instruction manual

Standards & approvals:

• Brass body in accordance with EN 1982, EN 12164, EN 12165

• Molded chrome-plated body in accordance with EN 12540

• 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

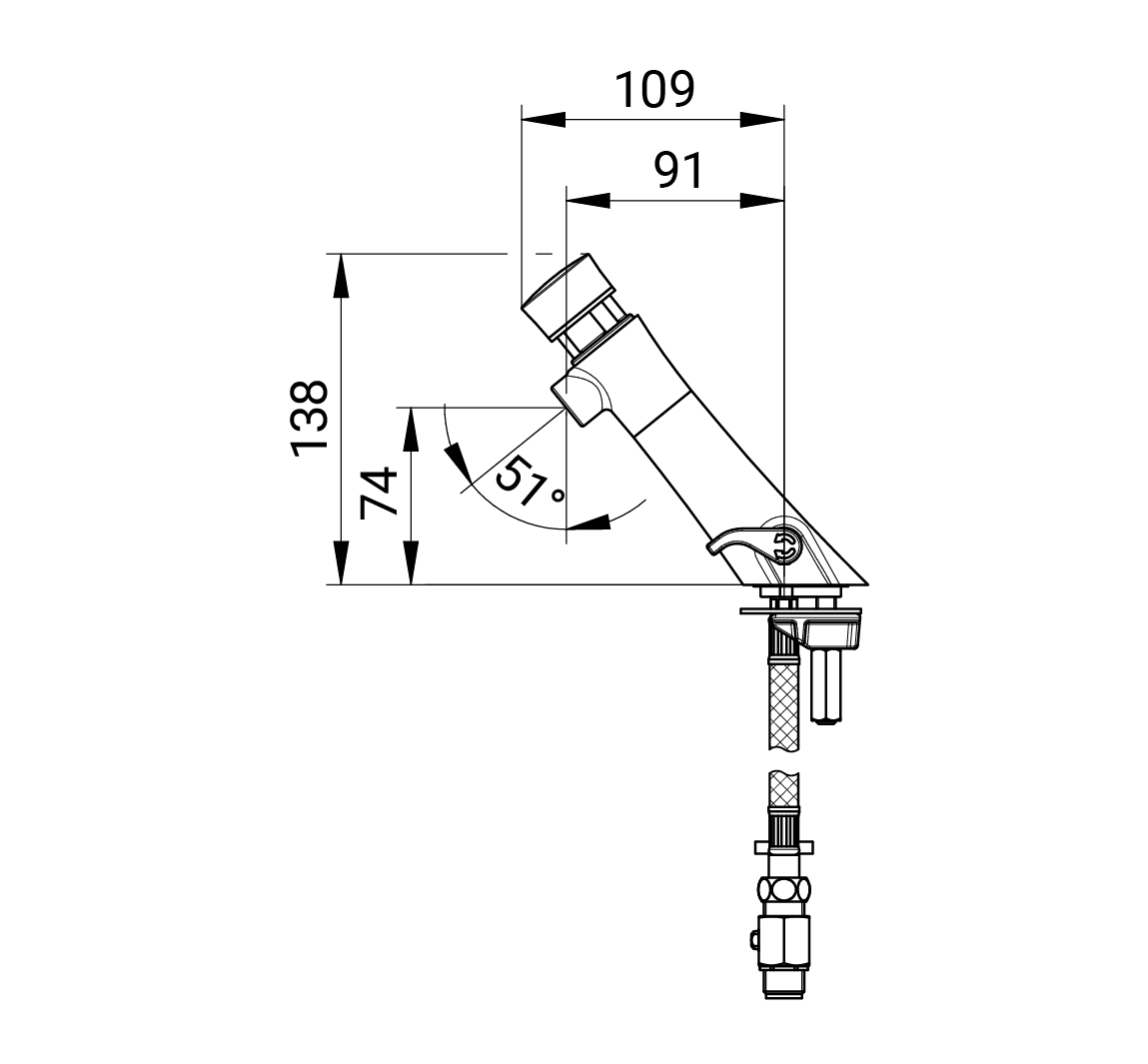

Washbasin deck-mounted self-closing mixer tap
