Features
Working pressure:
-
2 to 5 bar
Function:
-
Sensor trigger suitable for elderly, children and disabled people
Flow time:
-
7 sec adjustable with PRESTOCOM
Flow:
-
1.7l/min with integrated flow controller sprayer
-
High quality anti-limescale aerator
-
Anti-water-hammering design
Hydraulic supply:
-
G 1/2" (15x21) - Cold or premixed water
Power supply:
-
230 V AC / 7 V DC Transformer in IP65 waterproof case
Material and colour finish:
-
Chromed injected molded metal body
Thermal resistance:
-
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
Security:
-
Anti-overflow security time set to 30 seconds preventing the water to flow continuously
-
Duty flush 30 sec every 24h after last use (adjustable flow time and frequency)
-
Low battery alert (blinking led)
Delivered with:
-
1 Brass clamming nut
-
1 Gasket and 1 Washer
-
1 External solenoid valve
-
1 Filter seal
-
230 VAC/7 VDC Transformer in IP65 waterproof case
Standards & approvals:
-
Brass in accordance with EN 1982, EN 12164, EN 12156
-
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Specification

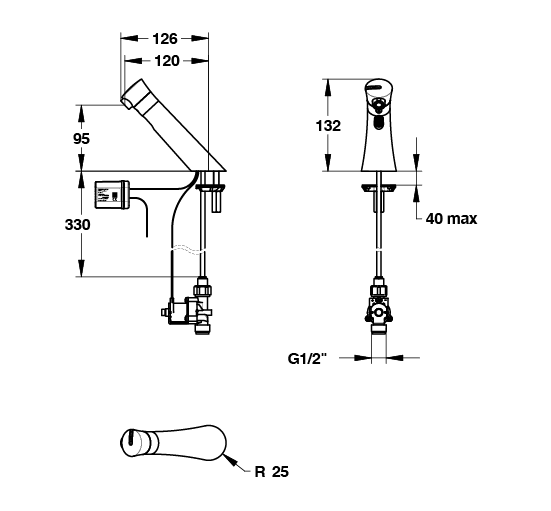

Deck-mounted sensor and timed-flow single tap, external, mains-operated, 1.7l/min
