Commercial & Wash Basin Taps

Working pressure:

• 1 to 5 bar

Flow:

• 3 l/min at 3 bars - 4-position setting

• Anti water-hammer system

Flow time:

• 15 seconds ± 5 seconds

Hydraulic supply:

• G 1/2" (15x21) - hot water

Thermal resistance:

• This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

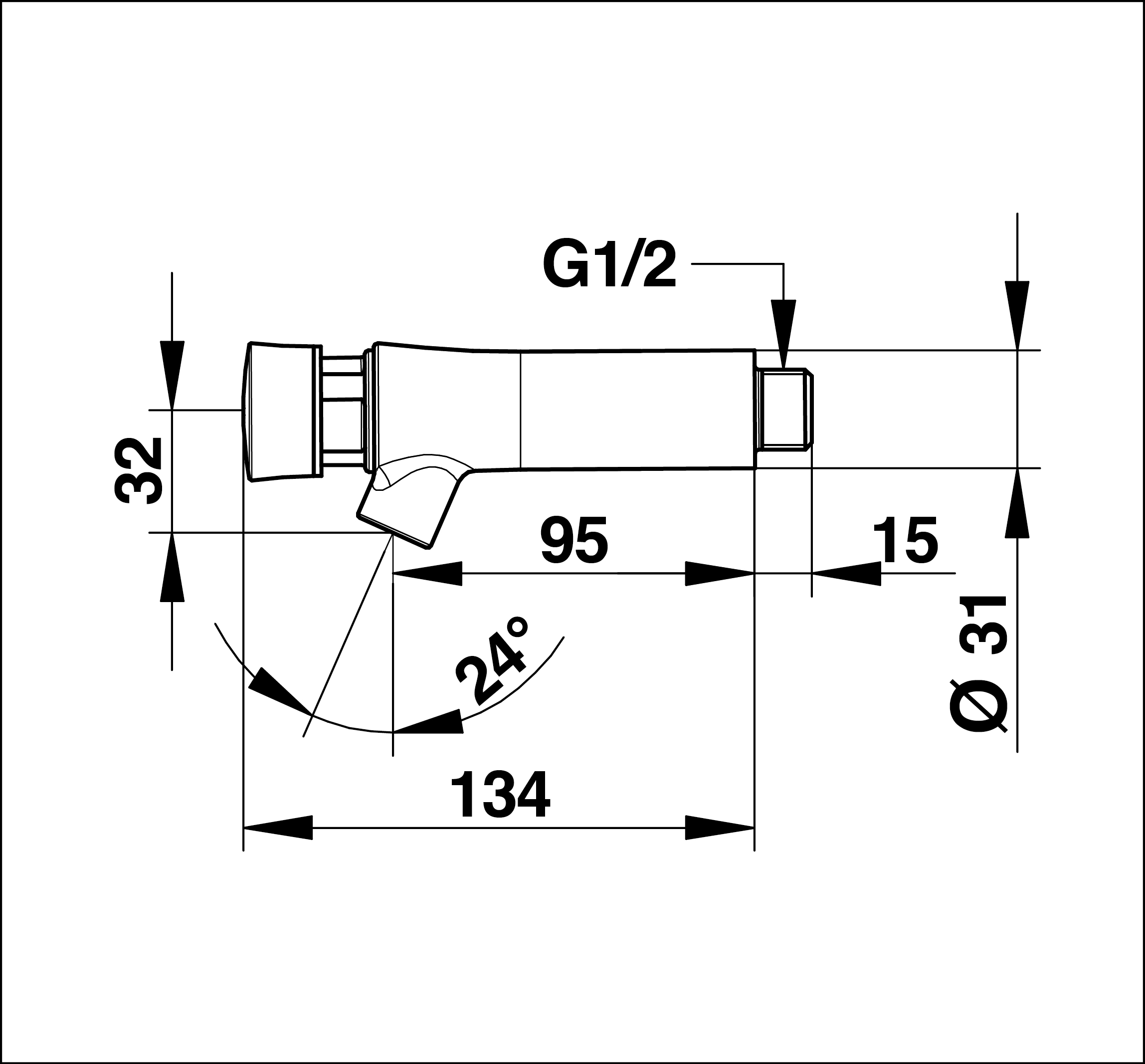

Dimensions:

• 95mm projection

Safety:

• Interchangeable head and non-turnable push button to avoid premature wear

• Non-removable blue circled marker

Delivered with:

• 1 Installation manual

Standards / Approvals:

• Acoustic class II

• Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165

• Nickel-Chrome surface treatment compliant with NF EN12540

• Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

NEO wall-mounted tap, Hot, 95mm, 15 sec
